LESS WEIGHT, MORE SPEED, MORE ABILITYNEW ULTRALIGHT CARBON FRAME WITH 750WH BATTERY: 22,6KG
Light weight. Speed. Integration. These are the defining qualities of the new Cube Stereo Hybrid ONE55 C:68X, which makes use of up to six different fibre types to meet the specific demands of each part of the frame. The result is a chassis that's the lightest e-mtb intube frame we've ever built – up to 20% lighter compared to our Stereo Hybrid 140 frame – combined with best-ever stiffness and, as you'd expect, a superior ride. An adjustable head angle and longer reach contribute to handling that more confident riders will love, serving up a cut-and-paste feel that enables tricky line choices even at speed thanks to 150mm of progressive rear wheel travel. Full internal cable routing reduces clutter and maintenance, and Bosch's new controller is neatly housed inside the top tube and can be controlled via Bluetooth from the optional remote. It's the complete package. LESS WEIGHT, MORE SPEED, MORE ABILITY: THAT'S THE IDEA BEHIND THE NEW STEREO HYBRID ONE55 C:68X SLX 750 29. USING OUR MOST ADVANCED C:68X® CARBON FRAME-BUILDING TECHNIQUES AND BORROWING FROM OUR EXPERIENCE BUILDING ULTRA-CAPABLE ENDURO RACE BIKES, IT'S GOT THE POWER TO MOVE (OVER) MOUNTAINS.
E-BIKE COMPONENTSDRIVE UNITBosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart SystemBATTERYBosch PowerTube 750REMOTEBosch System Control, incl. Mini RemoteCHARGERBosch 4A
FRAME
FRAME
C:68X® Monocoque Advanced Twin Mold Technology, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fully Integrated Battery, Advanced Internal Cable Routing
SIZE
29: M (18"), L (20"), XL (22")
SUSPENSION
SUSPENSION FORK
RockShox Lyrik Select+ Charger 2 RC DebonAir, Tapered, 15x110mm, eMTB Approved, 160mm
SHOCK
RockShox Super Deluxe Select+ DebonAir, 230x60mm
SHOCK HARDWARE
Front: 30x8mm, Rear: DU-Bushing 12,7mm
DRIVETRAIN & BRAKES
BRAKE SYSTEM
Magura MT7, Hydr. Disc Brake (203/203)
REAR DERAILLEUR
Sram GX Eagle™, 12-Speed
SHIFTERS
Sram GX Eagle™ Trigger, Single Click
CRANKSET
ACID E-Crank, 34T, 165mm
CHAIN GUIDE
Reverse Flip-Guide E-Chain Guide, Direct Mount, GEN4
CASSETTE
Sram XG-1275 Eagle™, 10-52T
CHAIN
Sram NX Eagle™
COCKPIT
HANDLEBAR
Newmen Evolution SL 318.25, 780mm
STEM
Newmen Evolution SL 318.4, 31.8mm
GRIPS
ACID Disrupt, Soft Compound
HEADSET
ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
WHEELS
WHEELSET
Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
FRONT TYRE
Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 2.5 WT
REAR TYRE
Maxxis Minion DHR II, MaxxGrip/DoubleDown, Tubeless Ready, 2.4 WT
FINISHING KIT
SEAT POST
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
SADDLE
Natural Fit Venec
PRODUCT INFORMATION
WEIGHT
22,6 kg
COLOUR
liquidred´n´carbon
ART. NO
636553
Faster, lighter, more capable: the Cube Stereo Hybrid ONE55 C:68X SLX 750 29 blends the mountain-taming capability of a downhill-oriented machine with the speed and agility of our lightest-ever carbon hybrid intube full-suspension frame to create a versatile all-rounder. With up to 85Nm of torque from the proven fourth-generation Bosch CX drive, a 750Wh battery and intuitive control from the built-in controller and optional remote, it's got the power to take on any trail. Up front there's a 160mm RockShox Lyrik Select+ fork, and we fitted a Super Deluxe Select+ shock at the rear for 150mm of progressive travel. Fast-rolling Newmen Performance wheels are shod with Maxxis Assegai 2.5in and Minion DHR II 2.4in tyres and brought to a halt with Magura's powerful four-piston hydraulic disc brakes and oversize rotors at both ends. And Sram GX Eagle 1x12 gears get your power to the trail, for miles of effortless shifting. It's ready. Are you?
THIS IS WHERE THE MAGIC HAPPENS. CUBE'S SUSPENSION KINEMATICS DELIVERS A MAGIC CARPET RIDE, WHILE FOURTH-GENERATION BOSCH POWER AND RELIABLE COMPONENTS GIVE YOU THE TOOLS YOU NEED TO MAKE LIGHT WORK OF ANY TRAIL. DISCOVER NEW POSSIBILITIES, EXPAND YOUR HORIZONS AND OPEN UP THE MOUNTAINS.
Evolution never stops. That's why, across all frames in our SizeSplit system, the Stereo Hybrid 140 HPC now features the ability to house up to a 750Wh battery under its dust- and splash-proof cover. It means you can power the fourth-generation Bosch CX drive unit – with 85Nm of hill-devouring torque – on long rides, whatever frame size fits you best. The Boost 148 rear axle, large pivot bearings and All Mountain Geometry deliver assured handling, even when you're exploring the limits of the 140mm rear and 150mm front travel. Sram's UDH gear hanger helps protect against crash damage and is easily replaceable. And Integrated Cable Routing reduces maintenance and complements the clean lines of the full carbon main frame.
E-BIKE COMPONENTSDRIVE UNITBosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart SystemBATTERYBosch PowerTube 750DISPLAYBosch Kiox 300CHARGERBosch 4A
FRAME
FRAME
C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
SIZE
Size Split: 27.5: S (16") // 29: M (18"), L (20"), XL (22")
SUSPENSION
SUSPENSION FORK
Fox 34 Float Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, E-Bike Optimized, 150mm
SHOCK
Fox Float DPS EVOL, 205x60mm (27.5: 185x55mm), Open/Medium/Firm Mode, Trunnion Mount
SHOCK HARDWARE
Top: 54mm Trunnion Mount, Bottom: 22.2x8mm
DRIVETRAIN & BRAKES
BRAKE SYSTEM
Shimano XT BR-M8120, Hydr. Disc Brake (203/203)
REAR DERAILLEUR
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
SHIFTERS
Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
CRANKSET
ACID E-Crank, 165mm (27.5: 36T // 29: 34T)
CHAIN GUIDE
Reverse Flip-Guide E-Chain Guide, Direct Mount, GEN4
CASSETTE
Shimano Deore CS-M6100, 10-51T
CHAIN
Shimano CN-M6100
COCKPIT
HANDLEBAR
Newmen Evolution SL 318.25, 780mm
STEM
CUBE Performance Stem E-MTB, 31.8mm
GRIPS
ACID Disrupt, Soft Compound
HEADSET
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
WHEELS
WHEELSET
Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
FRONT TYRE
Schwalbe Hans Dampf, Addix Soft, Super Trail, Tubeless Easy, 2.6
REAR TYRE
Schwalbe Hans Dampf, Addix Speedgrip, Super Trail, Tubeless Easy, 2.6
FINISHING KIT
SEAT POST
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
SADDLE
Natural Fit Venec
PRODUCT INFORMATION
WEIGHT
24,1 kg
COLOUR
liquidblue´n´blue
ART. NO
636163

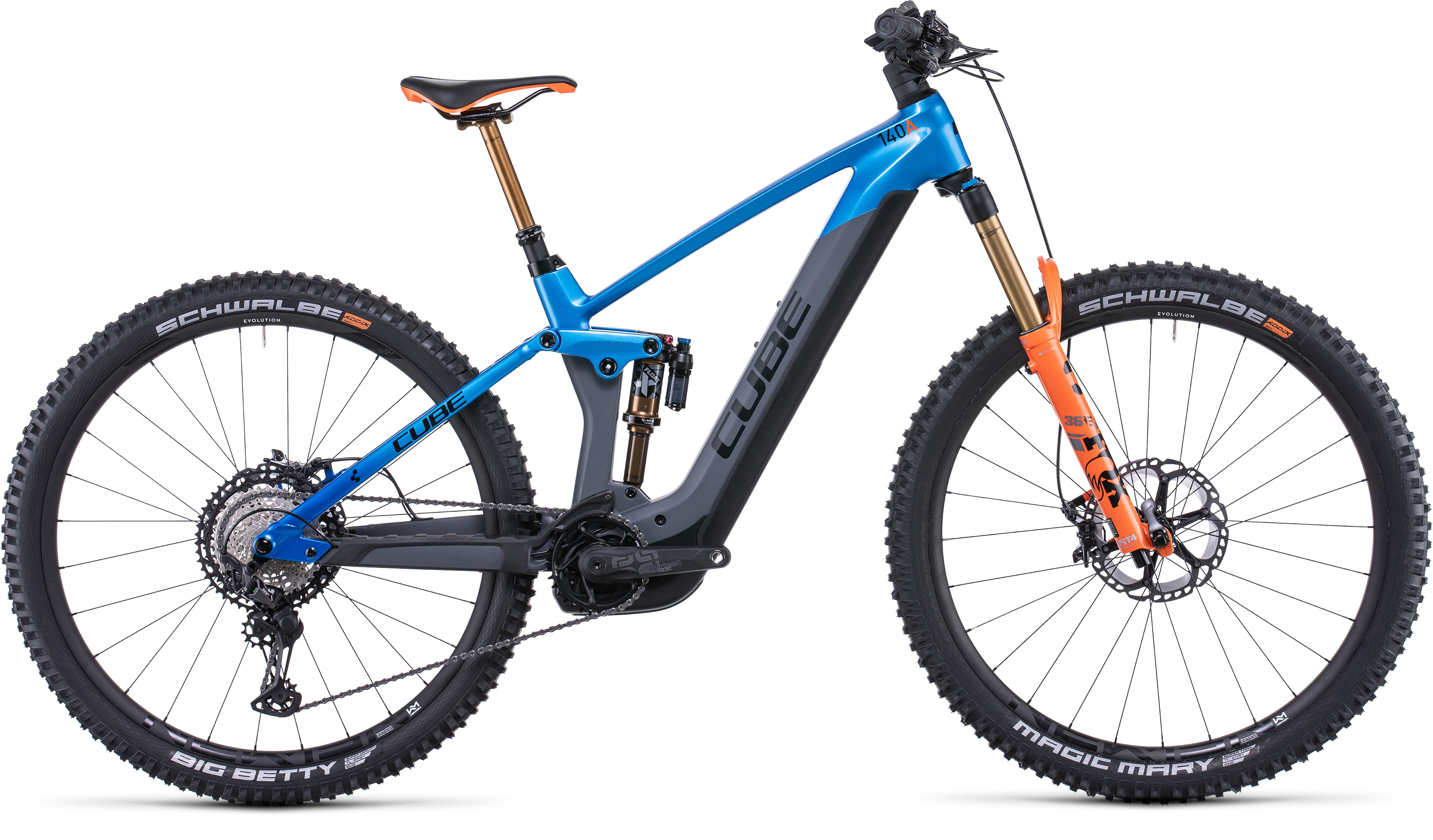

DETAILS MATTER, AND THEY MATTER EVEN MORE WHEN YOU'RE ON A BIG DAY OUT ON MOUNTAIN TRAILS. THE STEREO HYBRID 140 HPC ACTIONTEAM 750'S CARBON MAIN FRAME IS PURPOSE-BUILT FOR ALL-MOUNTAIN RIDING, AND ITS BOSCH CX DRIVE SYSTEM AND CAREFULLY SELECTED COMPONENTS ARE ALL CHOSEN FOR MAXIMUM PERFORMANCE... SO YOU CAN JUST GET OUT AND RIDE.CARBON FRAME Cube Stereo Hybrid 140Evolution never stops. That's why, across all frames in our SizeSplit system, the Stereo Hybrid 140 HPC now features the ability to house up to a 750Wh battery under its dust- and splash-proof cover. It means you can power the fourth-generation Bosch CX drive unit – with 85Nm of hill-devouring torque – on long rides, whatever frame size fits you best. The Boost 148 rear axle, large pivot bearings and All Mountain Geometry deliver assured handling, even when you're exploring the limits of the 140mm rear and 150mm front travel. Sram's UDH gear hanger helps protect against crash damage and is easily replaceable. And Integrated Cable Routing reduces maintenance and complements the clean lines of the full carbon main frame.E-BIKE COMPONENTSDRIVE UNITBosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart SystemBATTERYBosch PowerTube 750DISPLAYBosch Kiox 300CHARGERBosch 4A160 KG MAXIMUM SYSTEM WEIGHT The maximum system weight refers to the combined weight of the rider and bike (which is subject to a separate weight limit that must not be exceeded) plus any accessories attached to the bike, such as a trailer, luggage carrier, etc.
FRAME
FRAME
C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
SIZE
Size Split: 27.5: S (16") // 29: M (18"), L (20"), XL (22")
SUSPENSION
SUSPENSION FORK
Fox 36 Float Factory FIT4, 3-Position w/Low Speed Compression Adjust, Tapered, 15x110mm, E-Bike Optimized, 150mm, Kashima Coated
SHOCK
Fox Float X Factory, 205x60mm (27.5: 185x55mm), Adjustable LSC w/ 2-Pos. Lever, Trunnion Mount, Kashima Coated
SHOCK HARDWARE
Top: 54mm Trunnion Mount, Bottom: 22.2x8mm
DRIVETRAIN & BRAKES
BRAKE SYSTEM
Shimano XT BR-M8120, Hydr. Disc Brake (203/203)
REAR DERAILLEUR
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
SHIFTERS
Shimano XT SL-M8100-IR, Direct Attach
CRANKSET
e*thirteen Plus Crank, 165mm (27.5: 36T // 29: 34T)
CHAIN GUIDE
Reverse Flip-Guide E-Chain Guide, Direct Mount, GEN4
CASSETTE
Shimano XT CS-M8100, 10-51T
CHAIN
Shimano XT CN-M8100
COCKPIT
HANDLEBAR
Newmen Advanced 318.25, Carbon, 780mm
STEM
CUBE Performance Stem E-MTB, 31.8mm
GRIPS
ACID Disrupt, Soft Compound
HEADSET
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
WHEELS
WHEELSET
Newmen Evolution SL E.G. 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
FRONT TYRE
Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4
REAR TYRE
Schwalbe Big Betty, Super Gravity, Addix Soft, Kevlar, 2.4
FINISHING KIT
SEAT POST
Fox Transfer Factory 31.6mm, Kashima Coated
SADDLE
Natural Fit Venec
PRODUCT INFORMATION
WEIGHT
24,2 kg
COLOUR
actionteam
ART. NO
636253
THE ALLROUNDERTRAIL TAMING FOR EVERYONE, WITH THE COMFORT AND CONTROL OF THE STEREO HYBRID 120 PRO. BOSCH'S FOURTH-GENERATION CX DRIVE AND SMOOTH, COMFORTABLE ROCKSHOX SUSPENSION FRONT AND REAR MAKE A FORMIDABLE COMBINATION FOR EXPLORING YOUR WORLD. FROM FOREST TRACKS TO ALPINE PATHS AND ANYTHING IN-BETWEEN, THIS IS THE BIKE TO GIVE YOUR WEEKENDS A BOOST.
.
The Stereo Hybrid 120 Pro combines comfortable, ground-hugging suspension with intuitive handling and reliable, fuss-free performance. Bosch's fourth-generation CX drive unit and a large-capacity battery are matched with Shimano's legendarily easy-to-use Deore 1x12 gears for simple trail-taming power. We added four-piston hydraulic disc brakes with oversize rotors front and rear, for safe stopping in any conditions. Schwalbe's grippy 2.6in tyres add extra comfort and control, and RockShox suspension front and rear keeps the rubber side down and rolling. It's all you need for off-the-beaten-path adventures.
E-BIKE COMPONENTSDRIVE UNITBosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart SystemBATTERYBosch PowerTube 625DISPLAYBosch Led RemoteCHARGERBosch 4A
FRAME
FRAME
Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points
SIZE
Size Split: 27.5: S (16") // 29: M (18"), L (20"), XL (22")DRIVETRAIN & BRAKES
BRAKE SYSTEM
Shimano BR-MT420, Hydr. Disc Brake (203/203)
REAR DERAILLEUR
Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed
SHIFTERS
Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
CRANKSET
ACID E-Crank, 38T, 170mm
CASSETTE
Sunrace CSMZ600, 11-51T
CHAIN
Shimano CN-M6100COCKPIT
HANDLEBAR
Newmen Evolution SL 318.25, 760mm
STEM
CUBE Performance Stem E-MTB, 31.8mm
GRIPS
ACID Hybrid Perform
HEADSET
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)WHEELS
FRONT HUB
CUBE Engineered By Newmen, 15mm, Boost, Centerlock
REAR HUB
CUBE Engineered By Newmen, 12mm, Boost, Centerlock
RIMS
Rodi Tryp 30, 32H, Disc, Tubeless Ready
TYRES
Schwalbe Smart Sam, Active, 2.6FINISHING KIT
SEAT POST
CUBE Performance Post, 30.9mm
SADDLE
Natural Fit Sequence
PEDALS
ACID PP MTBPRODUCT INFORMATION
WEIGHT
25,1 kg
COLOUR
flashgrey´n´orange
THE ALLROUNDERTRAIL TAMING FOR EVERYONE, WITH THE COMFORT AND CONTROL OF THE STEREO HYBRID 120 PRO. BOSCH'S FOURTH-GENERATION CX DRIVE AND SMOOTH, COMFORTABLE ROCKSHOX SUSPENSION FRONT AND REAR MAKE A FORMIDABLE COMBINATION FOR EXPLORING YOUR WORLD. FROM FOREST TRACKS TO ALPINE PATHS AND ANYTHING IN-BETWEEN, THIS IS THE BIKE TO GIVE YOUR WEEKENDS A BOOST.
.
The Stereo Hybrid 120 Pro combines comfortable, ground-hugging suspension with intuitive handling and reliable, fuss-free performance. Bosch's fourth-generation CX drive unit and a large-capacity battery are matched with Shimano's legendarily easy-to-use Deore 1x12 gears for simple trail-taming power. We added four-piston hydraulic disc brakes with oversize rotors front and rear, for safe stopping in any conditions. Schwalbe's grippy 2.6in tyres add extra comfort and control, and RockShox suspension front and rear keeps the rubber side down and rolling. It's all you need for off-the-beaten-path adventures.
E-BIKE COMPONENTSDRIVE UNITBosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart SystemBATTERYBosch PowerTube 625DISPLAYBosch Led RemoteCHARGERBosch 4A
FRAME
FRAME
Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points
SIZE
Size Split: 27.5: S (16") // 29: M (18"), L (20"), XL (22")DRIVETRAIN & BRAKES
BRAKE SYSTEM
Shimano BR-MT420, Hydr. Disc Brake (203/203)
REAR DERAILLEUR
Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed
SHIFTERS
Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
CRANKSET
ACID E-Crank, 38T, 170mm
CASSETTE
Sunrace CSMZ600, 11-51T
CHAIN
Shimano CN-M6100COCKPIT
HANDLEBAR
Newmen Evolution SL 318.25, 760mm
STEM
CUBE Performance Stem E-MTB, 31.8mm
GRIPS
ACID Hybrid Perform
HEADSET
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)WHEELS
FRONT HUB
CUBE Engineered By Newmen, 15mm, Boost, Centerlock
REAR HUB
CUBE Engineered By Newmen, 12mm, Boost, Centerlock
RIMS
Rodi Tryp 30, 32H, Disc, Tubeless Ready
TYRES
Schwalbe Smart Sam, Active, 2.6FINISHING KIT
SEAT POST
CUBE Performance Post, 30.9mm
SADDLE
Natural Fit Sequence
PEDALS
ACID PP MTBPRODUCT INFORMATION
WEIGHT
25,1 kg
COLOUR
flashgrey´n´orange
WHERE WE'RE GOING WE DON'T NEED ROADS. GET BACK TO THE FUTURE WITH THE STEREO HYBRID 140 HPC TM 750'S POWERFUL BOSCH CX DRIVE, TOUGH FOX SUSPENSION COMPONENTS AND SOPHISTICATED CUBE FRAME DESIGN AND KINEMATICS. ENDLESSLY ADAPTABLE AND EFFORTLESSLY CAPABLE, IT'S YOUR TICKET TO MOUNTAIN ADVENTURES.Big days out demand a reliable frame and components. That's why, for our Stereo Hybrid 140 HPC Race 750, our starting point was a RockShox 35 Silver Air fork and matching Deluxe Select+ shock plugged into a carbon main frame. Combined with tenaciously grippy Schwalbe 2.6in tyres, new Sram DB8 four-piston hydraulic brake calipers with mineral oil, and a remote dropper post, they're what you need to tackle anything the trail throws your way with complete confidence. Add fourth-generation Bosch CX power with Shimano's super-reliable XT 1x12 gears, and you've got the complete package to make light of any mountain trail.150kg MAXIMUM SYSTEM WEIGHTThe maximum system weight refers to the combined weight of the rider and bike (which is subject to a separate weight limit that must not be exceeded) plus any accessories attached to the bike, such as a trailer, luggage carrier, etc.
E-BIKE COMPONENTSDRIVE UNITBosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart SystemBATTERYBosch PowerTube 750DISPLAYBosch Kiox 300CHARGERBosch 4A
FRAME
C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
SIZE
Size Split: 27.5: S (16") // 29: M (18"), L (20"), XL (22")
SUSPENSION
SUSPENSION FORK
RockShox 35 Silver TK Air, Tapered, 15x110mm, eMTB Approved, 150mm, Lockout
SHOCK
RockShox Deluxe Select+, 205x60mm (27.5: 185x55mm), Rebound Adjust, Trunnion Mount, Lockout
SHOCK HARDWARE
Top: 54mm Trunnion Mount, Bottom: 22.2x8mm
DRIVETRAIN & BRAKES
BRAKE SYSTEM
Sram DB8, Hydr. Disc Brake (203/203)
REAR DERAILLEUR
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
SHIFTERS
Shimano Deore SL-M6100, Rapidfire-Plus
CRANKSET
ACID E-Crank, 165mm (27.5: 36T // 29: 34T)
CHAIN GUIDE
Reverse Flip-Guide E-Chain Guide, Direct Mount, GEN4
CASSETTE
Shimano Deore CS-M6100, 10-51T
CHAIN
Shimano CN-M6100
COCKPIT
HANDLEBAR
Newmen Evolution SL 318.25, 760mm
STEM
CUBE Performance Stem E-MTB, 31.8mm
GRIPS
ACID React Pro
HEADSET
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
WHEELS
FRONT HUB
CUBE Engineered By Newmen, 15mm, Boost, Centerlock
REAR HUB
CUBE Engineered By Newmen, 12mm, Boost, Centerlock
RIMS
CUBE EX30, 32H, Disc, Tubeless Ready
TYRES
Schwalbe Nobby Nic, PerfL, 2.6
FINISHING KIT
SEAT POST
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
SADDLE
Natural Fit Venec
PRODUCT INFORMATION
WEIGHT
24,8 kg
COLOUR
grey´n´chrome
In search of new mountain adventures? Whether Eifel or Alps, the Stereo Hybrid 140 HPC Race is hardly a challenge too big off paved roads and forest trails. The high-performance carbon frame with 2.6 tires, RockShox 35 Silver fork and RockShox Deluxe shock with 140 mm travel each offers everything to rock even demanding trails comfortably. Steep climbs makes the Sram SX Eagle 12-speed gears a breeze. The powerful Bosch Performance CX drive with long-lasting battery allows the intuitively appropriate support in every situation. The battery can be charged either in the frame or externally. An integrated lock protects it from thieves. The Stereo Hybrid 140 - E-All-Mountain in perfection.Frame size XS (15"), S (17") comes with 27.5" wheels, sizes M (18"), L (20") and XL (22") are 29ers.FRAME Cube Stereo Hybrid 140The Stereo Hybrid 140 sets a new benchmark for all-mountain e-bikes. The high-performance carbon frame convinces with highly functional chassis kinematics. Whether root-spiked uphill passages, rapid or blocked downhills - the rear triangle responds sensitively and provides impressive control and smoothness. Thanks to the Agile Trail Geometry you get even on winding trails smoothly the curve. Large, robust bearings and a wide Boost 148 rear stay provide high stiffness and precise steering response. The elegant and cleverly placed in the down tube battery is perfectly protected from splashing water and can be easily and quickly removed. A frame lock gives thieves no chance. With a size split, the 15-inch frames roll on 27.5-inch wheels. From frame size 16 inches, the Stereo Hybrid 140 is available as a Twenty-Niner.E-BIKE COMPONENTSDRIVE UNITBosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)BATTERYBosch PowerTube 625DISPLAYBosch KioxCHARGERBosch 2A
Frame
C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, Full Integrated Battery
Frame material
Carbon mainframe, alloy rear triangle
Wheel size
Size Split: 27.5: XS (15"), S (17") // 29: M (18"), L (20"), XL (22")
Colour
desert´n´orange
Fork
RockShox 35 Silver, Tapered, 15x110mm, eMTB Approved, 140mm
Rear Shock
RockShox Deluxe Select+, 185x55mm, Rebound Adjust, Trunnion Mount, Lockout
Brakes
Shimano BR-MT520, Hydr. Disc Brake (203/203)
Headset
27.5: ACROS AZX-1032, BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // 29: ACROS AZX-1030, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Stem
CUBE Performance Stem E-MTB, 31.8mm
Handlebar
Newmen Evolution SL 318.25, 760mm
Bar grips
ACID React Pro
Saddle
Natural Fit Venec
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (XS, S: 100mm, M: 125mm, L, XL: 150mm)
Seat clamp
CUBE Screwlock Semi Integrated, 34.9mm
Crankset
ACID E-Crank, 165mm (27.5: 36T // 29: 34T)
Rear derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Gear shifters
Shimano Deore SL-M6100, Rapidfire-Plus
Chain guide
e*thirteen Plus e*spec
Cassette
Shimano Deore CS-M6100, 10-51T
Chain
Shimano CN-M6100
Tyres
Schwalbe Nobby Nic, PerfL, 2.6
Front hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear hub
Shimano FH-MT410-B, 12mm, Boost, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Display
Bosch Kiox
Battery
Bosch PowerTube 625
Charger
Bosch 2A
Engine
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)
Bearing dimension
Top: 54mm Trunnion Mount, Bottom: 22.2x8mm
Pedals
not included
Maximum total weight allowed
135 kg (body weight + bike + equipment)
Weight
starting from 25,1 kg
THIS IS WHERE THE MAGIC HAPPENS. CUBE'S SUSPENSION KINEMATICS DELIVERS A MAGIC CARPET RIDE, WHILE FOURTH-GENERATION BOSCH POWER AND RELIABLE COMPONENTS GIVE YOU THE TOOLS YOU NEED TO MAKE LIGHT WORK OF ANY TRAIL. DISCOVER NEW POSSIBILITIES, EXPAND YOUR HORIZONS AND OPEN UP THE MOUNTAINS.
Evolution never stops. That's why, across all frames in our SizeSplit system, the Stereo Hybrid 140 HPC now features the ability to house up to a 750Wh battery under its dust- and splash-proof cover. It means you can power the fourth-generation Bosch CX drive unit – with 85Nm of hill-devouring torque – on long rides, whatever frame size fits you best. The Boost 148 rear axle, large pivot bearings and All Mountain Geometry deliver assured handling, even when you're exploring the limits of the 140mm rear and 150mm front travel. Sram's UDH gear hanger helps protect against crash damage and is easily replaceable. And Integrated Cable Routing reduces maintenance and complements the clean lines of the full carbon main frame.
E-BIKE COMPONENTSDRIVE UNITBosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart SystemBATTERYBosch PowerTube 750DISPLAYBosch Kiox 300CHARGERBosch 4A
FRAME
FRAME
C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
SIZE
Size Split: 27.5: S (16") // 29: M (18"), L (20"), XL (22")
SUSPENSION
SUSPENSION FORK
Fox 34 Float Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, E-Bike Optimized, 150mm
SHOCK
Fox Float DPS EVOL, 205x60mm (27.5: 185x55mm), Open/Medium/Firm Mode, Trunnion Mount
SHOCK HARDWARE
Top: 54mm Trunnion Mount, Bottom: 22.2x8mm
DRIVETRAIN & BRAKES
BRAKE SYSTEM
Shimano XT BR-M8120, Hydr. Disc Brake (203/203)
REAR DERAILLEUR
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
SHIFTERS
Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
CRANKSET
ACID E-Crank, 165mm (27.5: 36T // 29: 34T)
CHAIN GUIDE
Reverse Flip-Guide E-Chain Guide, Direct Mount, GEN4
CASSETTE
Shimano Deore CS-M6100, 10-51T
CHAIN
Shimano CN-M6100
COCKPIT
HANDLEBAR
Newmen Evolution SL 318.25, 780mm
STEM
CUBE Performance Stem E-MTB, 31.8mm
GRIPS
ACID Disrupt, Soft Compound
HEADSET
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
WHEELS
WHEELSET
Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
FRONT TYRE
Schwalbe Hans Dampf, Addix Soft, Super Trail, Tubeless Easy, 2.6
REAR TYRE
Schwalbe Hans Dampf, Addix Speedgrip, Super Trail, Tubeless Easy, 2.6
FINISHING KIT
SEAT POST
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
SADDLE
Natural Fit Venec
PRODUCT INFORMATION
WEIGHT
24,1 kg
COLOUR
liquidblue´n´blue
ART. NO
636163
THIS IS WHERE THE MAGIC HAPPENS. CUBE'S SUSPENSION KINEMATICS DELIVERS A MAGIC CARPET RIDE, WHILE FOURTH-GENERATION BOSCH POWER AND RELIABLE COMPONENTS GIVE YOU THE TOOLS YOU NEED TO MAKE LIGHT WORK OF ANY TRAIL. DISCOVER NEW POSSIBILITIES, EXPAND YOUR HORIZONS AND OPEN UP THE MOUNTAINS.
Evolution never stops. That's why, across all frames in our SizeSplit system, the Stereo Hybrid 140 HPC now features the ability to house up to a 750Wh battery under its dust- and splash-proof cover. It means you can power the fourth-generation Bosch CX drive unit – with 85Nm of hill-devouring torque – on long rides, whatever frame size fits you best. The Boost 148 rear axle, large pivot bearings and All Mountain Geometry deliver assured handling, even when you're exploring the limits of the 140mm rear and 150mm front travel. Sram's UDH gear hanger helps protect against crash damage and is easily replaceable. And Integrated Cable Routing reduces maintenance and complements the clean lines of the full carbon main frame.
E-BIKE COMPONENTSDRIVE UNITBosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart SystemBATTERYBosch PowerTube 750DISPLAYBosch Kiox 300CHARGERBosch 4A
FRAME
FRAME
C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
SIZE
Size Split: 27.5: S (16") // 29: M (18"), L (20"), XL (22")
SUSPENSION
SUSPENSION FORK
Fox 34 Float Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, E-Bike Optimized, 150mm
SHOCK
Fox Float DPS EVOL, 205x60mm (27.5: 185x55mm), Open/Medium/Firm Mode, Trunnion Mount
SHOCK HARDWARE
Top: 54mm Trunnion Mount, Bottom: 22.2x8mm
DRIVETRAIN & BRAKES
BRAKE SYSTEM
Shimano XT BR-M8120, Hydr. Disc Brake (203/203)
REAR DERAILLEUR
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
SHIFTERS
Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
CRANKSET
ACID E-Crank, 165mm (27.5: 36T // 29: 34T)
CHAIN GUIDE
Reverse Flip-Guide E-Chain Guide, Direct Mount, GEN4
CASSETTE
Shimano Deore CS-M6100, 10-51T
CHAIN
Shimano CN-M6100
COCKPIT
HANDLEBAR
Newmen Evolution SL 318.25, 780mm
STEM
CUBE Performance Stem E-MTB, 31.8mm
GRIPS
ACID Disrupt, Soft Compound
HEADSET
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
WHEELS
WHEELSET
Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
FRONT TYRE
Schwalbe Hans Dampf, Addix Soft, Super Trail, Tubeless Easy, 2.6
REAR TYRE
Schwalbe Hans Dampf, Addix Speedgrip, Super Trail, Tubeless Easy, 2.6
FINISHING KIT
SEAT POST
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
SADDLE
Natural Fit Venec
PRODUCT INFORMATION
WEIGHT
24,1 kg
COLOUR
liquidblue´n´blue
ART. NO
636163
WHERE WE'RE GOING WE DON'T NEED ROADS. GET BACK TO THE FUTURE WITH THE STEREO HYBRID 140 HPC TM 750'S POWERFUL BOSCH CX DRIVE, TOUGH FOX SUSPENSION COMPONENTS AND SOPHISTICATED CUBE FRAME DESIGN AND KINEMATICS. ENDLESSLY ADAPTABLE AND EFFORTLESSLY CAPABLE, IT'S YOUR TICKET TO MOUNTAIN ADVENTURES.Big days out demand a reliable frame and components. That's why, for our Stereo Hybrid 140 HPC Race 750, our starting point was a RockShox 35 Silver Air fork and matching Deluxe Select+ shock plugged into a carbon main frame. Combined with tenaciously grippy Schwalbe 2.6in tyres, new Sram DB8 four-piston hydraulic brake calipers with mineral oil, and a remote dropper post, they're what you need to tackle anything the trail throws your way with complete confidence. Add fourth-generation Bosch CX power with Shimano's super-reliable XT 1x12 gears, and you've got the complete package to make light of any mountain trail.150kg MAXIMUM SYSTEM WEIGHTThe maximum system weight refers to the combined weight of the rider and bike (which is subject to a separate weight limit that must not be exceeded) plus any accessories attached to the bike, such as a trailer, luggage carrier, etc.
E-BIKE COMPONENTSDRIVE UNITBosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart SystemBATTERYBosch PowerTube 750DISPLAYBosch Kiox 300CHARGERBosch 4A
FRAME
C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
SIZE
Size Split: 27.5: S (16") // 29: M (18"), L (20"), XL (22")
SUSPENSION
SUSPENSION FORK
RockShox 35 Silver TK Air, Tapered, 15x110mm, eMTB Approved, 150mm, Lockout
SHOCK
RockShox Deluxe Select+, 205x60mm (27.5: 185x55mm), Rebound Adjust, Trunnion Mount, Lockout
SHOCK HARDWARE
Top: 54mm Trunnion Mount, Bottom: 22.2x8mm
DRIVETRAIN & BRAKES
BRAKE SYSTEM
Sram DB8, Hydr. Disc Brake (203/203)
REAR DERAILLEUR
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
SHIFTERS
Shimano Deore SL-M6100, Rapidfire-Plus
CRANKSET
ACID E-Crank, 165mm (27.5: 36T // 29: 34T)
CHAIN GUIDE
Reverse Flip-Guide E-Chain Guide, Direct Mount, GEN4
CASSETTE
Shimano Deore CS-M6100, 10-51T
CHAIN
Shimano CN-M6100
COCKPIT
HANDLEBAR
Newmen Evolution SL 318.25, 760mm
STEM
CUBE Performance Stem E-MTB, 31.8mm
GRIPS
ACID React Pro
HEADSET
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
WHEELS
FRONT HUB
CUBE Engineered By Newmen, 15mm, Boost, Centerlock
REAR HUB
CUBE Engineered By Newmen, 12mm, Boost, Centerlock
RIMS
CUBE EX30, 32H, Disc, Tubeless Ready
TYRES
Schwalbe Nobby Nic, PerfL, 2.6
FINISHING KIT
SEAT POST
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
SADDLE
Natural Fit Venec
PRODUCT INFORMATION
WEIGHT
24,8 kg
COLOUR
grey´n´chrome
Get the performance benefits of the sustainable merino wool, made from natural fibers. Mons royale merino apparel is inspired by the mountains and made for every use. Merino wool. Regulates body temperature. moisture-wicking fabric. quick drying merino.
The Alagna 3/4 legging stops at your boot top for a seamless marriage of sock and baselayer.Features190 merino wool regulates your temperature and naturally resists odour100% merino softness3/4 length legs for boot top comfortSignature Mons Royale wide elastic waistbandNo side seams for a comfortable fitMerino Single JerseyWeight: 190gsm100% Merino Wool
The Alagna 3/4 legging stops at your boot top for a seamless marriage of sock and baselayer.Features190 merino wool regulates your temperature and naturally resists odour100% merino softness3/4 length legs for boot top comfortSignature Mons Royale wide elastic waistbandNo side seams for a comfortable fitMerino Single JerseyWeight: 190gsm100% Merino Wool
DESCRIPTION:
A mid layer with ultimate warmth to weight ratio. Merino Gridlock
fabric traps heat and manages moisture to keep you warm on colder days, while
lightweight enough to never weigh you down on multi-day pursuits. The Approach
will take you where you need to go on-trail, bike, and snow.
MATERIALS:
Fabric: Merino Shift FleeceWeight: 300gsmBlend: 65% Merino Wool 25% Recycled Polyester 9% Nylon 1% Elastane
DESCRIPTION:
A mid layer with ultimate warmth to weight ratio. Merino Gridlock
fabric traps heat and manages moisture to keep you warm on colder days, while
lightweight enough to never weigh you down on multi-day pursuits. The Approach
will take you where you need to go on-trail, bike, and snow.
MATERIALS:
Fabric: Merino Shift FleeceWeight: 300gsmBlend: 65% Merino Wool 25% Recycled Polyester 9% Nylon 1% Elastane
DESCRIPTION:The minimalist style of this ribbed knit headband will keep your ears warm without blowing your thermostat.MATERIALS:50% Basolan Merino Wool 50% Acrylic
Arcadia is a real all-rounder: a versatile mid-layer for ultimate warmth and maximum performance on every adventure. The clean design, made from durable merino wool fleece makes this jacket the perfect year-round solution.
Fit: Standard
Features:
Zipped pockets
Stand-up collar
Full zip for venting
Drop tail for extra coverage.
Fabric: Merino Fleece
Weight: 265gsm
Blend: 59% Recycled Polyester 36% Merino Wool 5% Elastane
Arcadia is a real all-rounder: a versatile mid-layer for ultimate warmth and maximum performance on every adventure. The clean design, made from durable merino wool fleece makes this jacket the perfect year-round solution.
Fit: Standard
Features:
Zipped pockets
Stand-up collar
Full zip for venting
Drop tail for extra coverage.
Fabric: Merino Fleece
Weight: 265gsm
Blend: 59% Recycled Polyester 36% Merino Wool 5% Elastane
DESCRIPTION:Warm no matter what. Lightweight warmth with an ergonomic cut and merino fleece panels create freedom of movement for freeriding and ski touring. The Arete can be stashed away in your pack and will provide instant warmth once layered. It has the additional advantage that it will keep you warm even when wet. 80 Merino Wool Insulation combined with our recycled polyester shell fabric gives you sustainable warmth. MATERIALS:Merino Wool Padding: 70% Merino Wool 30% Polyester Rip Stop Outer: 100% Recycled Polyester Merino Fleece Panels: 59% Polyester 36% Merino Wool 5% Elastane Lining: 100% Nylon
Our online store offers you a wide range of products and services around the outdoor store and e-bike store. With many years of experience and professional expertise, we can offer you a wide range of high quality items from Val Gardena. Our store is known for its high quality products supported with the latest technology and attentive customer service. Our goal is to provide you with the best possible experience with our store by providing you with a wide range of products to suit your needs. We pride ourselves on offering our customers a comprehensive selection of outdoor and e-bike items to suit their needs. Our team of experienced experts is always ready to help you choose the right products and assist you in every step of the shopping process.
This website uses cookies to ensure the best experience possible. More information...
